उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|

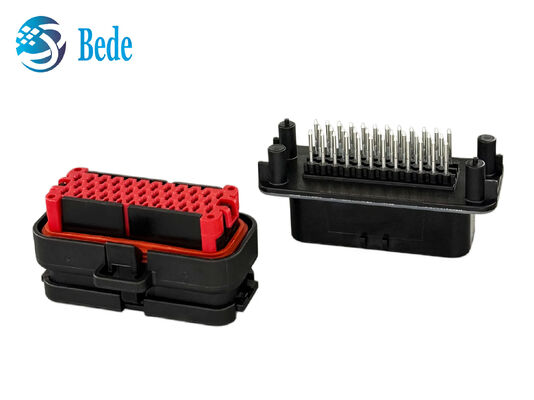

| माउन्टिंग का प्रकार: | बोर्ड माउंट | नत्थी करना: | 35 पिन |
|---|---|---|---|
| स्त्री भाग संख्या: | 1-776164-1 | पुरुष भाग संख्या: | 1-776231-1 |
| सामग्री: | काला PA66+GF (UL94 V-0), तांबा मिश्र धातु (टिन/सोना चढ़ाया हुआ) | तापमान की रेंज: | -40 ℃ ~ + 125 ℃ |
| वाटरप्रूफ रेटिंग: | आईपी67 | पंक्तियों की संख्या: | 3 |
| प्रमुखता देना: | 35-Pin Automotive ECU Connector,1-776164-1 Automotive ECU Connector,AMP Automotive ECU Connector |
||
| Component | Features | TE Part Number | Specification |
|---|---|---|---|
| Part Number | 35POS, pin dia 1.3, HDR Assy, 180deg, COD 1 | 1-776231-1 | Vertical through-hole PCB header |
| Rated Current | Up to 17A per contact, gold-plated mating area | - | Power & signal circuit applications |
| Mounting Style | Vertical, through-hole solder termination to PCB | - | Wire-to-board connection |

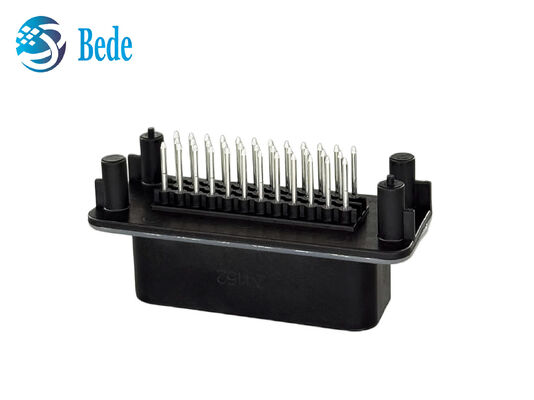

| Header Type | Fully shrouded, 35 vertical pins, 3 rows, 4mm pitch | 1-776231-1 | Vertical PCB male header |

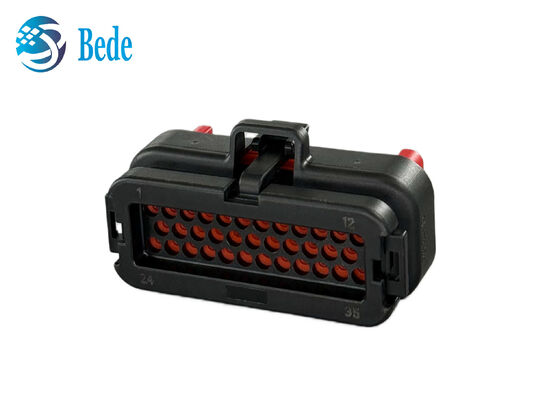

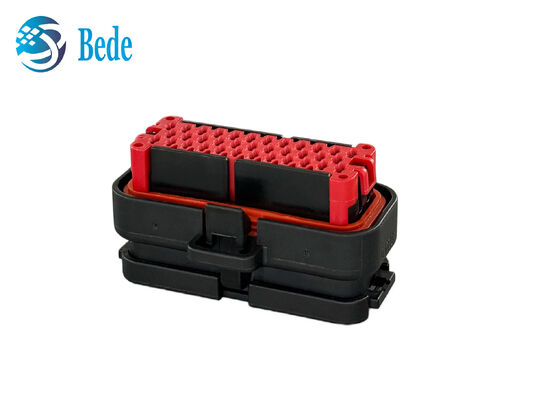

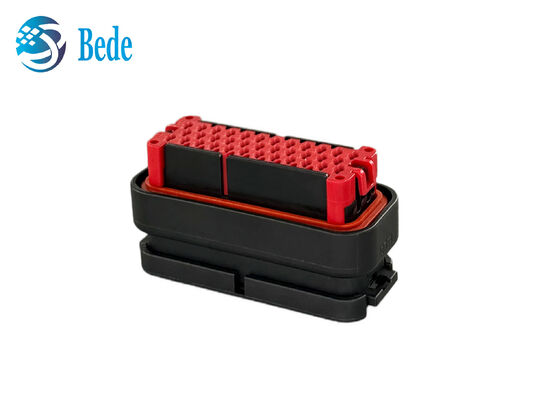

| Female Housing (Wire Side) | Integral silicone seal, red secondary lock, latch | 776164-1 | IP67 waterproof female connector |
| Sealability | Sealable design | - | Suitable for sealed environments |
| Housing Features | Black housing, keying code 1, UL 94V-0 flammability rating | - | Robust industrial construction |
| Operating Temperature | -40°C to 125°C | - | Wide-range environmental compatibility |
